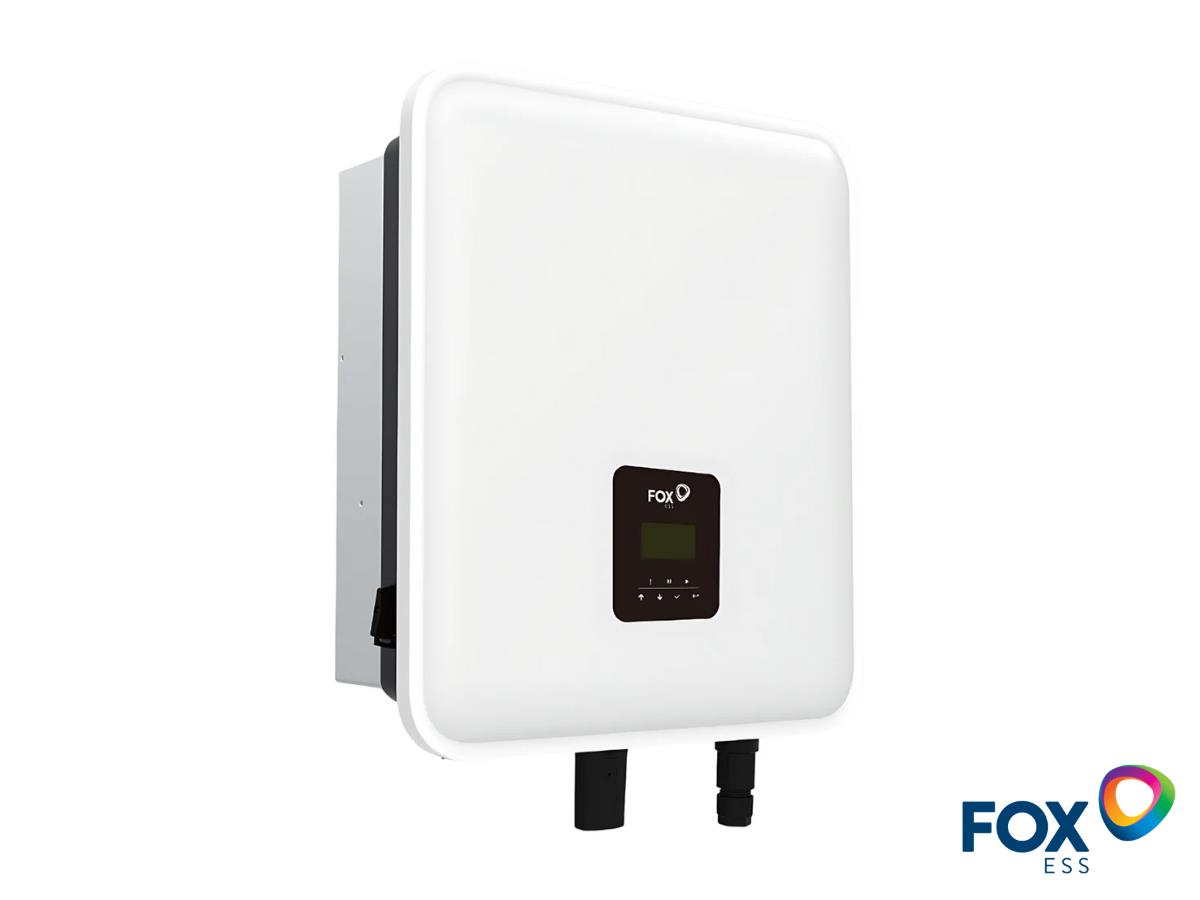

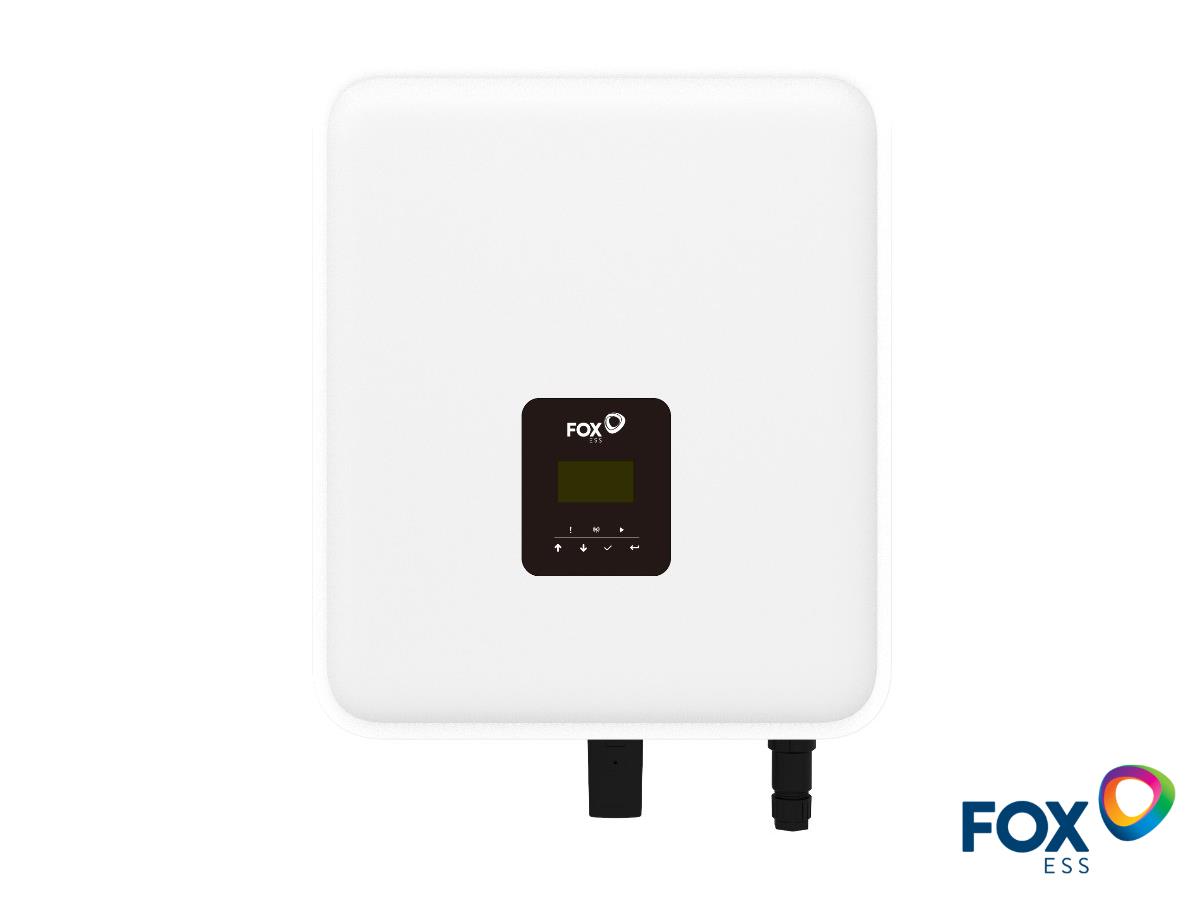

Fox ESS KH Single Phase 8kW 1ph Hybrid Inverter

The Fox ESS KH 8kW 1ph Hybrid Inverter is engineered for larger single-phase applications, offering a flexible, efficient, and future-ready energy solution. Featuring three MPPTs, this inverter allows for parallel installation to maximize scalability and provides a wide array of ESS solutions for installers, compatible with the full range of Fox ECS and HV batteries.

Key Features:

• Flexible and Adaptable: Designed for seamless plug-and-play installation, it can function as a standard grid-tied inverter with the flexibility to integrate batteries at a later stage, accommodating various energy storage needs.

• Integrated Connectivity: The inverter comes with a supplied WiFi dongle for convenient monitoring, with LAN and 4G dongles also available for diverse connectivity options.

• Comprehensive Package: It includes a CT clamp as standard, with an optional Modbus meter available.

• Emergency Power Supply (EPS): An inbuilt EPS function ensures homeowners can maintain essential power during grid outages, providing reliability and peace of mind.

• Durable and Quiet Design: Boasting an IP65 protection rating, this inverter is suitable for outdoor installation, especially with ECS batteries, saving valuable indoor space. Its natural cooling system eliminates the need for noisy fans, ensuring quiet operation.

This powerful and adaptable inverter is an ideal solution for those seeking a robust and future-proof energy system, whether for immediate battery integration or future expansion.

 Technical Specifications:

• Rated AC Output Power: 8000W

• EPS Output Power: 8000W

• Phase: Single Phase

• Maximum PV Power: 12000W

• Maximum Input Current: 16A

• Maximum Input Voltage: 600V

• Start-up Voltage: 75V

• MPPTs: 3 (operating range: 80-500V)

• Maximum Efficiency: 97.80%

• Weight: 29 kg

• Dimensions (LWH): 450mm * 527mm * 208mm
