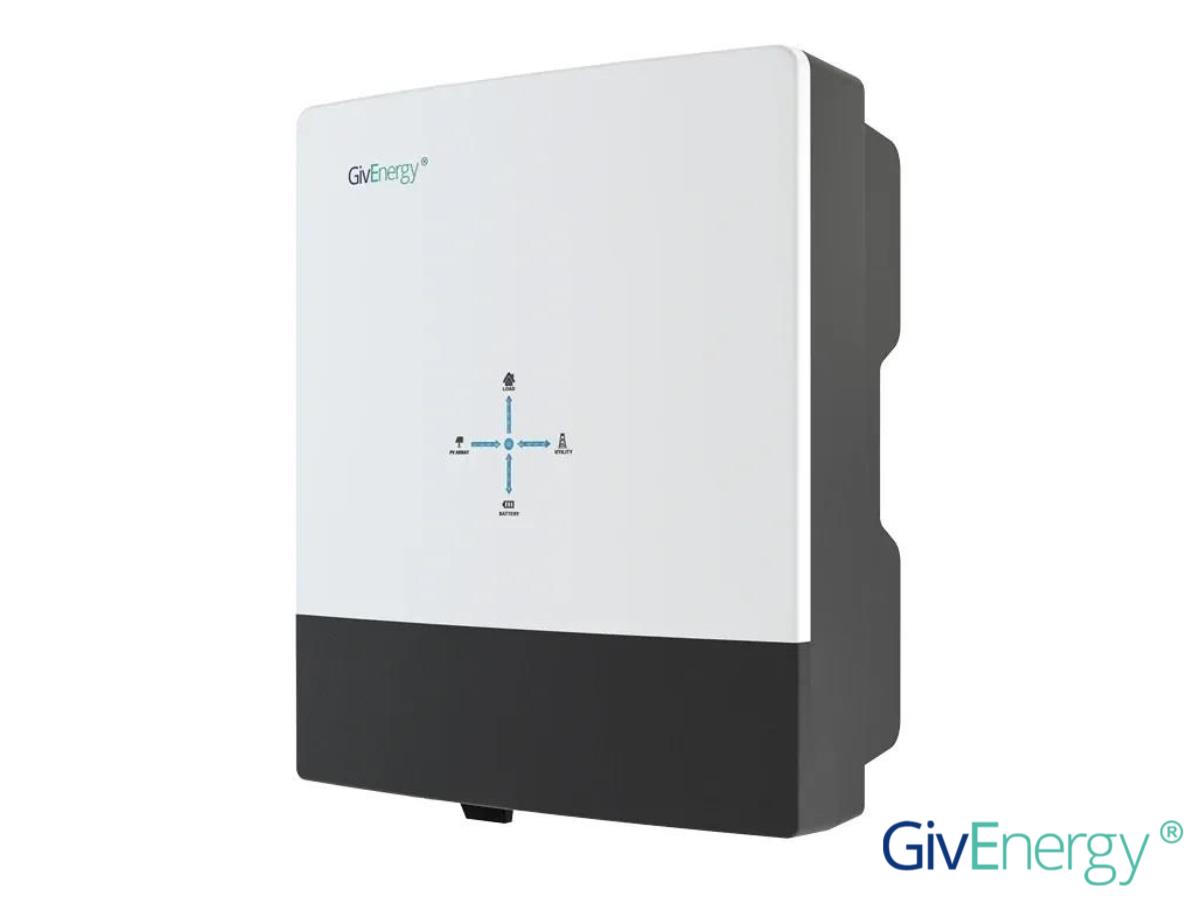

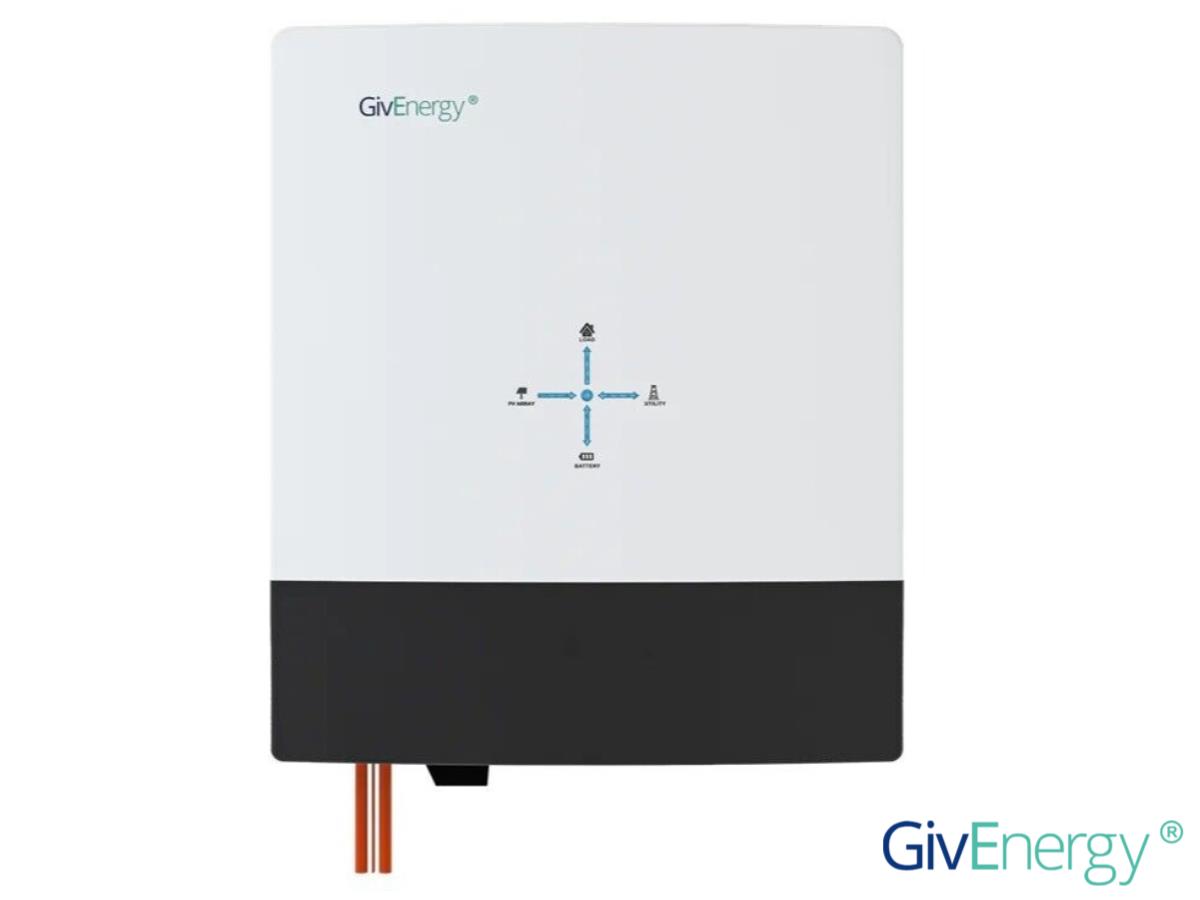

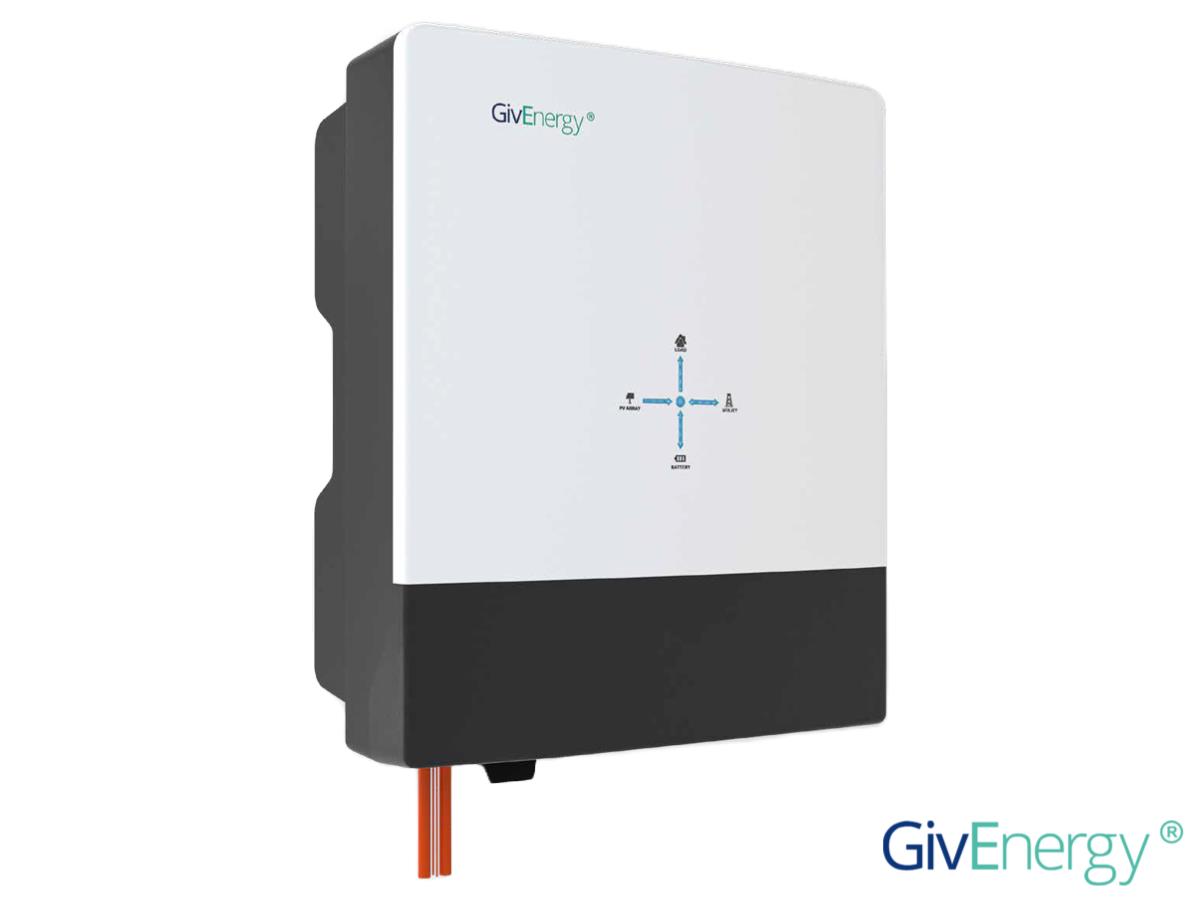

GivEnergy GIV-HY3.6 GEN 3

GIV Energy is a British Owned Energy Storage Systems manufacturer and are a market leading supplier of these systems across the UK and Europe.

The third generation of the GivEnergy Hybrid inverter is a DC-coupled storage solution which allows you to seemlessly integrate battery storage into PV systems.

The GIV energy Gen 3 hybrid inverter has taken the GIV energy brand on to new heights with a cleaner design discretely enclosing the connection ports. Additionally, the Gen 3 has an increased max input current per string of 15A allowing for higher current panels to be utilised in your system designs and an increased MPPT range.

• Inbuilt Wifi & Lan: You no longer need to worry about where you put that dongle (!) the WIFI and Lan are built in
• Higher charge/Discharge rate: high efficiency, high battery discharge rates of 3.6KW
• Flexible rate tariff: Charge the batteries at off peak, when it is cheaper, and discharge the battery at peak times for the highest savings.
• Industry leading 12 year warranty!


AC attributes
Max power: 3.6kW
Max current: 16A
Number of phases: 1

DC attributes:
Max PV power: 7.5kW
Max Isc: 20A
Max I (per string): 15A
Max voltage: 580V
Start up voltage: 150V
No. of MPPTs: 2
MPPT Range: 120-550V

Battery:
Battery type: LiFePO4
Battery voltage range: 45-58V
Charge / discharge current: 65A / 81A
Max. Charge/Discharge: 3300W / 3600W
Backup Terminal Parameters (AC):
Nominal AC output power: 3600W
Nominal voltage: 230Vac
Max. output current: 16A
Automatic switch time: 10ms

System:
Max efficiency: 97.6%
Charge / discharge efficiency: 94% / 94%
IP rating: IP65
Weight: 32kg
Dimensions: 588*214*480mm
